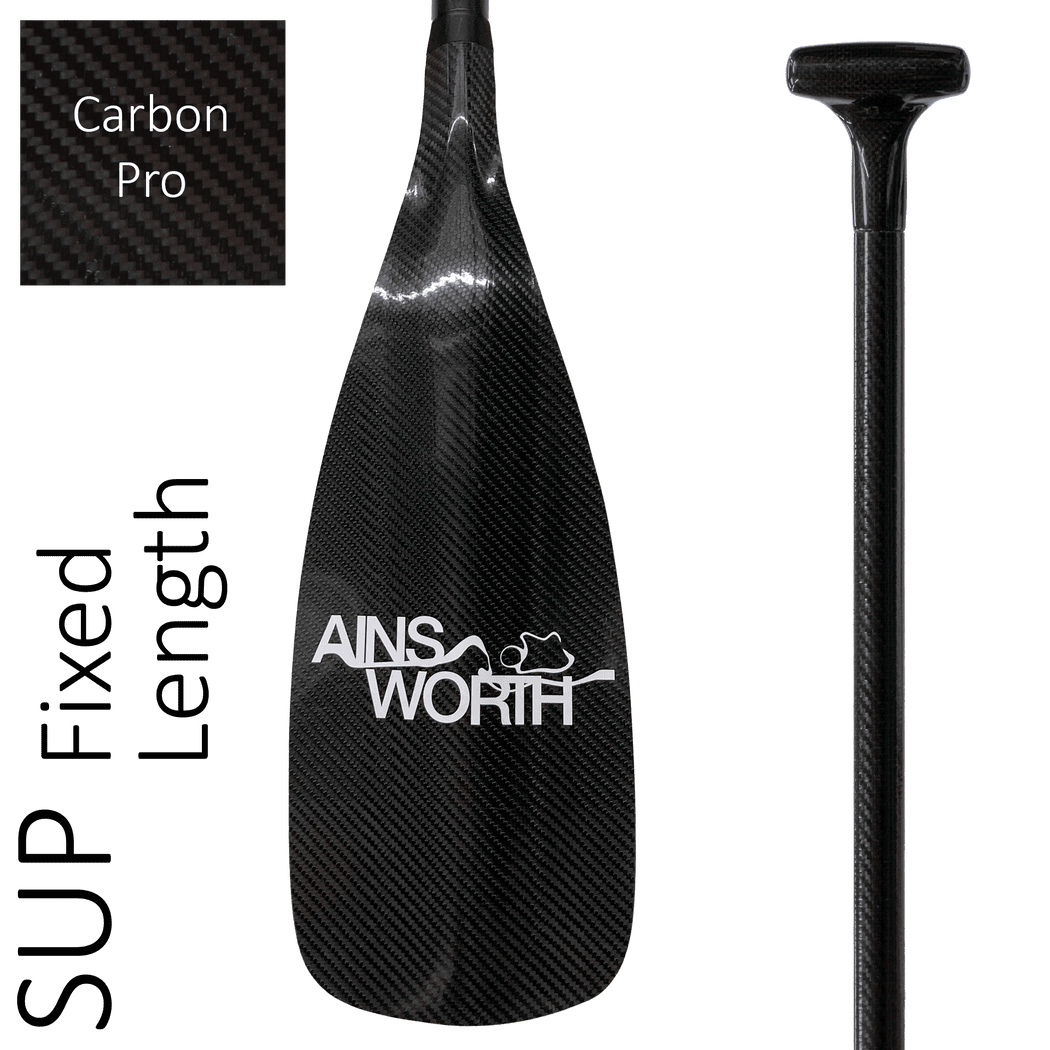

SUP (Carbon Pro) Fixed Length

Product Information

STAND UP PADDLES

Carbon Pro Range

We utilize the Carbon Pre Preg construction process to create our top-performing paddles, which are available in three blade sizes: Small, Medium, and Large.

Construction

Our advanced manufacturing process involves pre-impregnating Epoxy resin into Carbon fibers at high pressures, achieving a remarkable carbon to resin content of up to 65%. This technique results in a significantly lighter paddle while maintaining a robust blade with superior edge wear compared to traditional methods. The Carbon material utilized is of the highest quality, featuring a Twill weave that not only holds more carbon but also distributes the load away from the 0/90-degree axis. This material is also preferred by the F1 and aerospace industries for its exceptional properties.

Carbon composite shafts

At AINSWORTH, we incorporate 45-degree Bi Axial carbon fibers into our shafts, which increases their ultimate tensile strength (UTS). This is in contrast to other brands that only use fibers at 0/90 degrees, resulting in a weak point that may break. Moreover, the Bi Axial shaft induces an inherent spring into the structure, significantly enhancing the stroke's performance. Our shaft's exceptional strength, combined with a 10-degree kick back of the dihedral blade, not only advances the "catch" but also forces quicker drain at the end of the stroke.

Blade Shape

Having the correct paddling technique is crucial as an incorrect technique can negatively affect the blade's efficiency. At Ainsworth, we incorporate the dihedral shape into our SUP blades to assist in controlling water flow around the blade. This design also allows for sustained power output. Our blades feature power curves (scoops) on either side of the blade's centre, which enables better control and greater water pressure (=power) while reducing the chances of blade flutter, even when not fully immersed in the water. Our latest carbon blade designs are teardrop-shaped and come in three sizes: Small (540cm² = 84in²), Medium (585cm² = 91in²), and Large (640cm² = 99in²).

Warranty

At Ainsworth, we take pride in producing the strongest, lightest, and most durable paddles available in the market. We are highly confident in the performance of our paddles, and therefore we offer a one-year warranty to our customers. The warranty starts from the date of purchase and is limited to the original purchaser. It covers any defects in materials and workmanship under normal use. However, it is important to note that the warranty does not cover edge wear. Any damages resulting from abuse, negligence, or normal wear and tear will be repaired or replaced for a reasonable charge.
